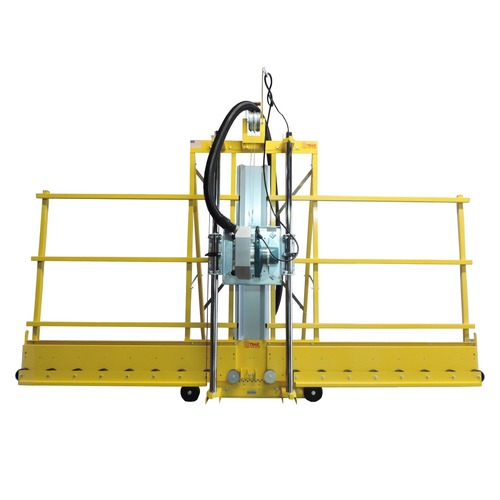

Saw Trax 3050 3000 Series 50 in. Cross Cut Full Size Vertical Panel Saw

Saw Trax Model: 3050
Price reduced from $5,983.99 to Save 7% $5,585.05
See More
See Less
free shipping
Free shipping on all orders over $149
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

Saw Trax 3050 3000 Series 50 in. Cross Cut Full Size Vertical Panel Saw Saw Trax Model: 3050
price for vip customer
Price reduced from $5,983.99 to Save 7% $5,585.05

OR PAY WITH

Product Features & specs :

Saw Trax 3050 3000 Series 50 in. Cross Cut Full Size Vertical Panel Saw

Details

For those seeking a powerful yet affordable 10 in. panel saw, the 3000 Series offers greater cutting depth and versatility while keeping costs low. Unlike competitors that require 230V, three-phase power, this model operates on 115V single-phase power, making it accessible to smaller shops. Built for precision and durability, it features: Makita HS0600 10 in. circular saw on a spinning insert plate for smooth operation, sealed steel bearing system on a quick-release carriage for effortless movement, steel sleeve-covered material rollers, acting as a protective armor against damage, and Saw Trax’s patented Accu-Square alignment system, ensuring permanent accuracy.

The 3000 Series is ideal for cutting thicker materials like doors or specialty woods, and for using 10 in. blades for finer cuts on materials like melamine. Standard features include: factory-attached folding stand for easy setup, frame wheels for effortless mobility, enhanced dust collection system with a blade shroud, bonnet, 12 ft. hose, and coupler, and dual measuring system with two rip pointers, vertical tape, horizontal stop, and strip bar for accurate repeat cuts.

If you need precision, deep cuts, and unlimited rip capability - all at a budget-friendly price - the 3000 Series Panel Saw is the perfect solution. Contact us today!

Features:

  • Built for cutting dense materials like MDF, plastics, and composite panels

  • Equipped with a powerful Makita HS0600 circular saw with a 10 in. blade

  • Cuts up to 2-1/2 in. thickness

  • Dust collection hood and 12 in. hose keep workspace cleaner

  • Rugged steel frame with steel-sleeved material rollers for smooth, durable feed

  • Patented Accu-Square alignment system - never goes out of square

  • Comes standard with folding stand, stop bar, spring hold-down, and transport wheels

What’s Included:

  • Makita 10 in. Saw

  • Trigger Lock

  • Spinning Saw Insert Plate

  • Dust Hood

  • Hose

  • Hose Coupler

  • Dust Containment Brush

  • Full 10 ft. Wide Steel Frame

  • Folding Stand

  • Transport Wheels

  • Dual Rip Gauges

  • Stop Block with Bar

  • Measuring Tapes

  • Steel Sleeved Material Rollers

Blade Diameter

10-1/4 in

Blade Speed (RPM)

5200

CSA Safety

No

Frame Width

120 in

Power Source

Corded

Wifi compatibility

No

Bluetooth Compatibility

No

Cross Cut Capacity

50 in

Arbor Size

5/8 in

Material Thickness (Max.)

2-1/2 in

Voltage

120V

Motor Type

Brushed

Amperage

15

UL Safety

Yes

ETL Safety

No

AC Voltage

120V

Length

42 in.

Width

121 in.

Height

77 in.

Weight

445 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Every Saw Trax Vertical Panel Saw is thoroughly inspected before leaving the factory. It is warranted to be free from defects from workmanship and materials for one year on all components except the saw motor. Should any trouble develop during the warranty period, contact us for a RMA & return that component with proof of purchase date, freight prepaid to Saw Trax Mfg. Co. Inc. If inspection shows the trouble caused by defective workmanship or materials, Saw Trax Mfg. Co. Inc. will repair (or, at our option, replace) without charge.


This warranty does not apply where:

  1. - Repairs have been made or attempted by others.

  2. - Repairs are required because of normal wear and tear.

  3. - The tool has been abused, misused or improperly maintained.

  4. - Alterations have been made to the tool.

  5. - Corrosion and / or rust have developed due to scratches in the finish.

  6. - The saw motor is covered by the saw manufacturer’s warranty and is not covered by Saw Trax Mfg., Inc.


In no event shall Saw Trax Mfg. Co., Inc. be liable for any indirect, incidental or consequential damages from the sale or use of this product. This disclaimer applies both during and after the duration of this warranty.

Saw Trax Mfg. Co. Inc. disclaims liability for any implied warranties, including (but not limited to) implied warranties of “merchantability” and/or “fitness” for a specific purpose, after the term of this warranty.
