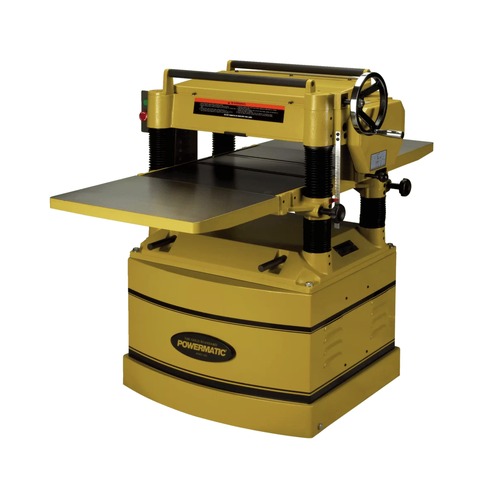

Powermatic 209HH-3 460V 5 HP 3-Phase Helical Cutterhead 20 in. Planer - PM9-1791316-4

Powermatic Model: PM9-1791316-4
$5,699.99
See More
See Less
free shipping
Free shipping on all orders over $149
free shipping
This item ships directly from the manufacturer.
alert warning icon

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic 209HH-3 460V 5 HP 3-Phase Helical Cutterhead 20 in. Planer - PM9-1791316-4 Powermatic Model: PM9-1791316-4
price for vip customer
$5,699.99

Product Features & specs :

Powermatic PM9-1791316-4 209HH-3 460V 5 HP 3-Phase Helical Cutterhead 20 in. Planer

Details

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5 HP motor and 20 in. planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5 in. dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:

  • Cast iron head

  • Cast iron table with extensions creates a big 55-1/2 in. x 20 in. working area

  • Chip breaker and pressure bar assists to reduce snipe

  • Chrome-plated, ergonomic handwheel makes adjustments smooth and easy

  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity

  • Fully enclosed base cabinet with integrated casters for shop mobility

  • Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8 in. maximum depth of cut and trouble-free operation

  • The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems

  • Factory production item - Build time required

What’s Included:

  • 209HH-3 460V 5 HP 3-Phase Helical Cutterhead 20 in. Planer - PM9-1791316-4

Power Source

Corded

PreWired Voltage

230V

Wifi compatibility

No

Max. Material Thickness

8 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5000

Cutterhead Diameter

3-3/16 in

Planing Width (Max.)

20 in

Feed Rate - Moulding (FPM)

24/31

Motor Phase

3

Horsepower

5

Voltage

230V/460V

Length

26 in.

Width

36.63 in.

Height

41.38 in.

Weight

840 lbs.

Warranty Term

5 Year
