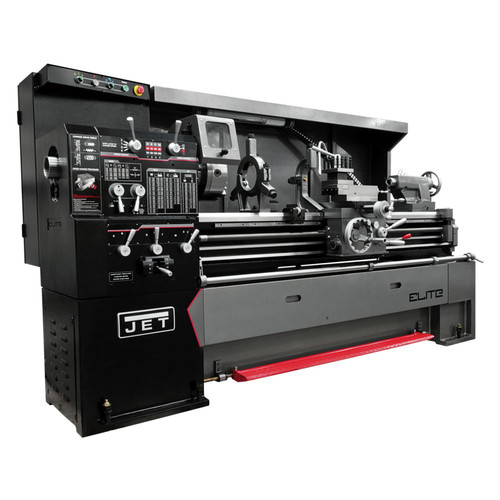

JET JT9-892501 Elite Geared Head Lathe EGH-1740 with Collet Closer JET Model: JT9-892501
price for vip customer
Price reduced from $47,935.99 to Save 15% $40,799.99

OR PAY WITH

Product Features & specs :

JET JT9-892501 Elite Geared Head Lathe EGH-1740 with Collet Closer

Details

Dependable, reliable, quality. Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

Features:

  • 3-1/8 in. Spindle Bore

  • Nylon safety gears in the end train prevent overloading, increasing safety

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Enclosed coolant system contains excess coolant for increased safety

  • Front facing chip pan allows easy chip removal from the front of the machine

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Steady rests feature ball bearing guides for smooth material movements

  • Wider bedways absorb vibration

What’s Included:

  • EGH-1740 W/ CC - 892501

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

2 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

230V

Range of Cross Feeds (IPR)

0.0008 - 0.02

Max. Compound Slide Travel

6-2/7 in.

Distance Between Centers

40 in

Bed Width

12 in

Tool Size

1 x 1 in

Gap Length

7-2/3 in

Swing Range (Cross Slide)

11 in

Range of Longitudinal Feeds (IPR)

0.0015 - 0.04 IPR

No. of Inch Threads

45

Bluetooth Compatibility

No

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015 - 0.04 in

Cross Slide Travel

9-1/4 in

Horsepower

7.5

Voltage

230V/460V

Spindle Speed Range (RPM)

36 - 1800

Compound Slide Travel

6-2/7 in

Range of Metric Threads

0.2 - 14

Spindle Travel (Tailstock)

5 in

Steady Rest Capacity

3/8 in - 6-3/4 in

No. of Metric Threads

39

Drive Type

Geared Head

Swing Range (Bed)

17 in

Max. Tailstock Spindle Travel

5 in.

Spindle Mount

Yes
