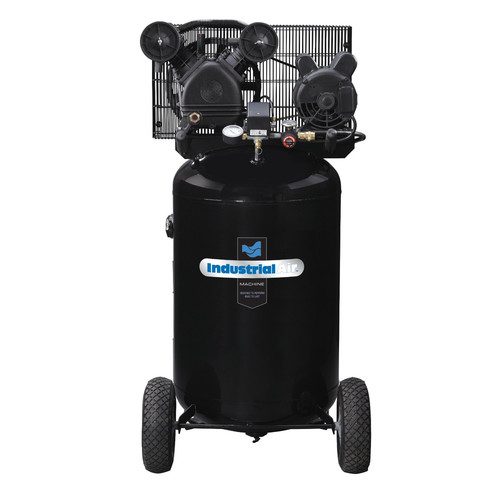

Industrial Air 1.6 HP 30 Gallon Oil-Lube Wheeled Vertical Air Compressor - ILA1683066

Industrial Air Model: ILA1683066
Price reduced from $972.99 to Save 13% $849.99
See More
See Less
free shipping
Free shipping on all orders over $149
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Industrial Air 1.6 HP 30 Gallon Oil-Lube Wheeled Vertical Air Compressor - ILA1683066 Industrial Air Model: ILA1683066
price for vip customer
Price reduced from $972.99 to Save 13% $849.99

OR PAY WITH

Product Features & specs :

Industrial Air ILA1683066 1.6 HP 30 Gallon Oil-Lube Wheeled Vertical Air Compressor

Details

Industrial Air's ILA1683066 1.6 HP 30 Gallon Oil-Lube Wheeled Vertical Air Compressor provides efficient runtimes for various air tools including, but not limited to, ratchets, wrenches, spray guns and hammers. Designed exclusively for the heavy-duty needs of mechanics, this unit highlights rugged components and is built to last under the most demanding conditions.

Features:

  • Cast iron V-twin cylinder pump provides durable and reliable performance that drives many air tools

  • Belt driven and oil lubricated for less noise than direct drive compressors

  • Pump features one-piece iron crankcase, thermally stable cast iron cylinder body, aluminum head and machined cast iron valve plates, automotive style ball bearings, and durable stainless steel reed valves

  • Oil level sight glass with easily accessible oil fill

  • 10 in. cast iron balanced flywheel for smooth, powerful operation

  • Heavy-duty dual voltage 1.6 HP induction motor is wired for standard 120V outlets, but may also be converted for 240V applications

  • Quick-set regulator, tank and tool pressure gauges to monitor compressor performance at a glance

  • Quick Connect air outlet for quick and easy tool switching

  • Vertical frame with handle, along with pneumatic tires for maximum portability.

What’s Included:

  • 1.6 HP 30 Gallon Oil-Lube Wheeled Vertical Air Compressor - ILA1683066

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

15

UL Safety

Yes

Power Type

Electric

Motor Type

Single Stage

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

30 gal

Operating Pressure (PSI)

155

Lubrication

Oil-Lube

Tank Style

Dolly

Phase

1

Horsepower

1.6

Air Consumption at 90 PSI (SCFM)

5.3

Voltage

120V/240V

Air Consumption at 40 PSI (SCFM)

6.2

Running Horsepower

1.6

ETL Safety

No

Length

25 in.

Width

24.5 in.

Height

50 in.

Weight

154 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Industrial Air Warranty

Industrial Air Power will do whatever it takes to make sure you are completely satisfied with your transaction.

Please note: Warranty does not include cost of service or replacement of other parts. The warranty is limited to only the buyer and does not apply under the following circumstances: improper use or installation, substitution of parts, abnormal operating conditions, or damage due to misapplication or attempt to repair. Warranty applies to IAP parts, see original equipment manufacturers for specific warranty terms.
