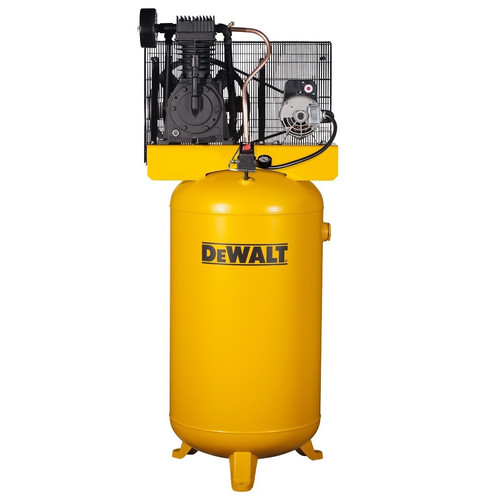

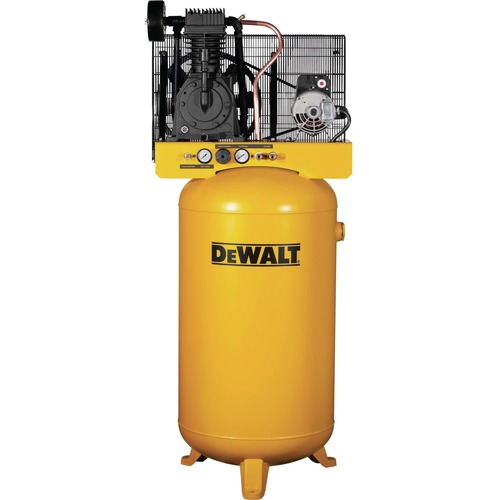

Dewalt DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor

Model: dewndxcmv5048055.1
ratings        (0) Write The First Review

Want an email when this item is in stock?

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor Model: dewndxcmv5048055.1

Product Features & specs :

Dewalt DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Vertical Stationary Air Compressor

Details
DEWALT's DXCMV5048055.1 5 HP 80 Gallon Oil-Lube Stationary Vertical Air Compressor features a high capacity tank that provides extended runtimes for various air tools including, but not limited to, ratchets, wrenches, spray guns and hammers. Designed exclusively for the heavy-duty needs of mechanics, this unit highlights rugged components and is built to last under the most demanding conditions.
Features:
  • 5 HP industrial grade electric motor delivers maximum CFM at 175 PSI for superior performance
  • Thermal Overload Protection (TOPS) motor protects the motor for voltage fluctuations
  • Patented 2-stage cast iron industrial-duty pump design provides a cooler running pump
  • Patented cast iron flywheel offer large pins for low pump RPM, improved cooling, and added pump life
  • Patented asymmetrical, deep groove cooling fins for long life and effective runtime
  • Integrated control panel includes large tank and output pressure gauges for easy reference
  • Large capacity 80 gallon air receiver is ASME rated for safety
What’s Included:
  • 5 HP 80 Gallon Oil-Lube Stationary Vertical Air Compressor - DXCMV5048055.1
Power Source
Corded
Lubrication System
Oil-Lube
Tank Capacity
80 gal
Drive System
Belt Drive
Amperage
22
UL Safety
Yes
Operating Pressure (PSI)
175
Tank Style
Stationary
CSA Safety
No
Pump Type
Reciprocating
Air Inlet Size
1/4 in
Horsepower
5
Motor Type
Brushed
Air Consumption at 90 PSI (SCFM)
18
Voltage
230V
Fitting Size
1/4 in
Air Consumption at 40 PSI (SCFM)
18.3
Running Horsepower
5
Tank Construction
Cast Iron
Noise Rating (dBA)
83
Tank Orientation
Vertical
ETL Safety
No
Length
31.5 in.
Width
34.75 in.
Height
80 in.
Weight
470 lbs.
Warranty Term
2 Year

Reviews :

There are no reviews for this item. Write Review

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
Is this used, reconditioned, or new?
Shane on Jun 18, 2019
BEST ANSWER: New!
What is the running Duty cycle?
A shopper on Nov 11, 2018
BEST ANSWER: Your question will be best answered by the manufacturer, who can provide you with the accurate information. The number to reach the technician is 1-800-433-9258.

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
