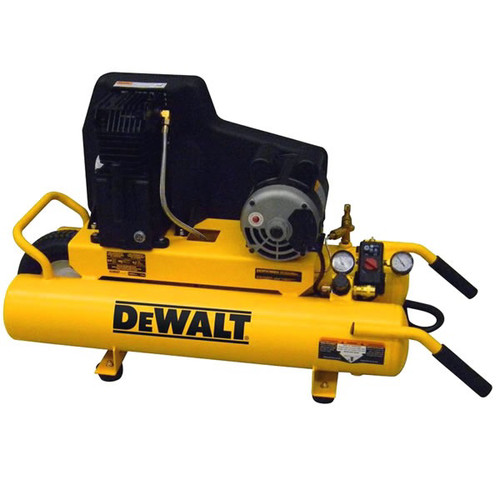

Dewalt DXCMTA1980854 1.9 HP 8 Gallon Oil-Lube Twin Tank Wheelbarrow Air Compressor

Model: dewndxcmta1980854
ratings        (0) Write The First Review
Price reduced from $799.99 to Save 13% $699.99
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt DXCMTA1980854 1.9 HP 8 Gallon Oil-Lube Twin Tank Wheelbarrow Air Compressor Model: dewndxcmta1980854
price for vip customer
Price reduced from $799.99 to Save 13% $699.99

OR PAY WITH

Product Features & specs :

Dewalt DXCMTA1980854 1.9 HP 8 Gallon Oil-Lube Twin Tank Wheelbarrow Air Compressor

Details
DEWALT's DXCMTA1980854 1.9 HP 8 Gallon Oil-Lube Twin Tank Wheelbarrow Air Compressor provides efficient runtimes for various air tools including, but not limited to, ratchets, wrenches, spray guns and hammers. Designed exclusively for the heavy-duty needs of mechanics, this unit highlights rugged components and is built to last under the most demanding conditions.
Features:
  • Cast iron twin cylinder pump features thermally stable cast iron cylinder body, aluminum head and valve plate, automotive style ball bearings, and durable Swedish stainless steel reed valves
  • Oil level sight glass with easily accessible oil fill
  • 12 in. cast iron balanced flywheel for reliable performance
  • Heavy duty, dual voltage induction motor is wired for standard 120V and can be converted to 240V
  • 155 PSI max pressure for optimum tool performance
  • Dual control valve allows continuous operation or start/stop operation
  • Center mount, flat-free tires move easily over rough terrain
  • Braided steel transfer tube allows greater flexibility, preventing unwanted leaks
What’s Included:
  • 1.9 HP 8 Gallon Oil-Lube Twin Tank Wheelbarrow Air Compressor - DXCMTA1980854
Power Source
Corded
Lubrication System
Oil-Lube
Drive System
Direct Drive
Amperage
8.5
UL Safety
Yes
Motor Type
Brushed
Tank Construction
Cast Iron
Tank Orientation
Horizontal
Tank Capacity
8 gal
Operating Pressure (PSI)
155
Tank Style
Wheelbarrow
CSA Safety
Yes
Pump Type
Reciprocating
Horsepower
1.9
Air Consumption at 90 PSI (SCFM)
5.7
Fitting Size
1/4 in
Air Consumption at 40 PSI (SCFM)
7
Running Horsepower
1.9
Noise Rating (dBA)
80
ETL Safety
No
Length
45.75 in.
Width
20 in.
Height
29 in.
Weight
160 lbs.
Warranty Term
2 Year

Reviews :

There are no reviews for this item. Write Review

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
I am looking for a wiring schematic for this air compressor. The dual voltage switch was disconnected and wires cut all over the place. I need to figure out where what wires go where from the motor. Can anybody help with this?

Thanks.
Shane on Nov 2, 2015
BEST ANSWER: Please contact Dewalt directly for technical information at 800-433-9258.
