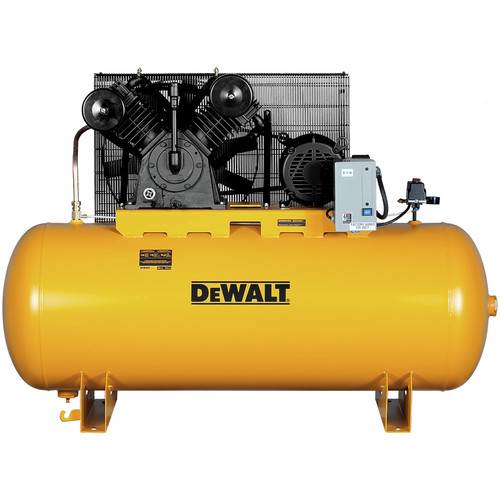

Dewalt 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor - DXCMH9919910

Model: DXCMH9919910

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor - DXCMH9919910 Model: DXCMH9919910

Product Features & specs :

Dewalt DXCMH9919910 10 HP 120 Gallon Oil-Lube Stationary Air Compressor with Baldor Motor

Details

DeWalt Compressors are jobsite tough, and built for the professional. DeWalt offers a full line of both electric and gas powered professional compressors. DeWalt compressors include lightweight, portable contractor units, high volume, high capacity wheeled contractor units and high capacity industrial compressors to accommodate the highest demand.

The DeWALT 10 HP 120 Gallon BALDOR Two Stage Oil-Lube Industrial Air Compressor is designed for the heavy-duty professional user. It features a heavy-duty BALDOR 4-pole, 1,725 RPM industrial-class electric motor which provides superior performance and long lasting durability. A cast iron cylinder head with patented deep-grove directional cooling fins, precision bored cylinders with patented asymmetrical cooling fins and a patented cast iron flywheel design with large extended fins for improved cooling of the pump and maintains low pump RPMs while maintaining consistent compression efficiency. The DXCMH9919910 has 175 maximum PSI to operate a wide range of tools while maintaining longer run times and with an integrated system panel for convenience and added control. This machine also has a unique belt guard which can improve compressor pump cooling by as much as 60 degrees over other belt guard designs.

Features:

  • BALDOR 4-pole, 1,725 RPM industrial class electric motor provides superior performance

  • Large capacity 120 gallon ASME certified tank

  • Industrial performance delivering a maximum 175 PSI

  • Patented pump design provides for a cooler running pump

  • Patented piston design for improved compression efficiency

  • Cast iron cylinder head with deep-grove directional and asymmetrical cooling fins

  • Unique belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs

  • Patented cast-iron flywheel design with large extended fins for improved cooling and low-pump RPM

  • NEMA rated and UL certified

What’s Included:

  • 10 HP 120 Gallon Baldor Two Stage Oil-Lube Industrial Air Compressor - DXCMH9919910

Phase

3

Pump Speed (RPM)

1725

Power Source

Corded

Air Inlet Size

1/4 in

Lubrication System

Oil-Lube

RPM

1725

Tank Capacity

120 gal

Drive System

Belt Drive

Horsepower

10

Motor Type

Brushed

Air Consumption at 90 PSI (SCFM)

35.2

Voltage

230V

Amperage

28

UL Safety

Yes

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

Power Type

Electric

Fitting Size

1/2 in

CSA Safety

No

Air Consumption at 40 PSI (SCFM)

35.5

Running Horsepower

10

Pump Type

Reciprocating

Tank Construction

Cast Iron

Noise Rating (dBA)

84

Tank Orientation

Horizontal

ETL Safety

No

Length

29 in.

Width

75 in.

Height

60 in.

Weight

920 lbs.

Warranty Term

2 Year

Reviews :

Q & A :

Warranty:

Dewalt Compressors Warranty

The warranty on new DEWALT compressors is as follows:

Electric Units:

  • 30 Day Money Back Guarantee
  • 1 Year Free Service Contract
  • 1 Year Full Warranty

Gas Units:

  • 1 Year Free Service Contract
  • 1 Year Warranty
  • 2 Year Limited Warranty on Honda GX Engine, through Authorized Honda Service Centers

NOTE: There is no return policy on gas compressors. They would have to be taken to a DEWALT Factory Service Center, not returned to CPO DEWALT.
