Dewalt 20V MAX XR 1-1/8 in. SDS Plus D-Handle Rotary Hammer Dust Extractor - DWH205DH

Model: dewndwh205dh
$177.99
free shipping
FREE shipping on orders $149+
free shipping

Estimates For

alert warning icon

  • In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 20V MAX XR 1-1/8 in. SDS Plus D-Handle Rotary Hammer Dust Extractor - DWH205DH Model: dewndwh205dh
price for vip customer
$177.99

OR PAY WITH

Product Features & specs :

Dewalt 20V MAX XR 1-1/8 in. SDS Plus D-Handle Rotary Hammer Dust Extractor - DWH205DH

Details

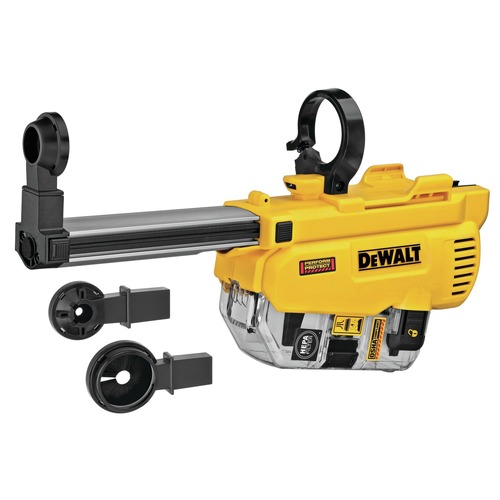

The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX XR Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1 in. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in. This dust extractor allows for bit lengths up to 10 in. in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like dropins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.

Features:

  • Coil nails with bright, galvanished (G12), hot-dipped or stainless steel surfaces finishes. Either spiral, ring, plain or barbed shank

  • Three replaceable optimized dust nozzle heads are tuned for up to 1 in. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in.

  • Bit lengths up to 10 in. in overall length

  • Quick release for easy tool assembly and disassembly

  • Compact inline design; Rotary hammer and dust collection only 3.72 in. wide installed

  • Durable clear high capacity dust box with replaceable HEPA cannister that removes 99.97% of airborne particle 0.3 microns or greater

  • Easily adjusted depth stop for accurate anchor hole depths

  • Dust extractor mounted LED for illuminating low light work environments

What’s Included:

  • 20V MAX XR 1-1/8 in. SDS Plus D-Handle Rotary Hammer Dust Extractor - DWH205DH

  • Table 1 OSHA 1926.1153-Compliant Dust Box Assembly - DWH302DH

  • (1) Three Dust Nozzle Heads for Up to 1 in. Diameter Bits, All Stop Bits Up to 1.5 in. Shoulder and Small Diameter Bits Up to 1/2 in.

Power Source

Cordless

Wifi compatibility

No

Battery Type

Li-Ion

Bluetooth Compatibility

No

Charger Included

No

Color

Yellow

Case Included

No

Voltage

20V

Battery System

20V MAX

Series

XR

Length

19.5 in.

Width

3.72 in.

Height

4.25 in.

Weight

4.5 lbs.

Warranty Term

3 Year
