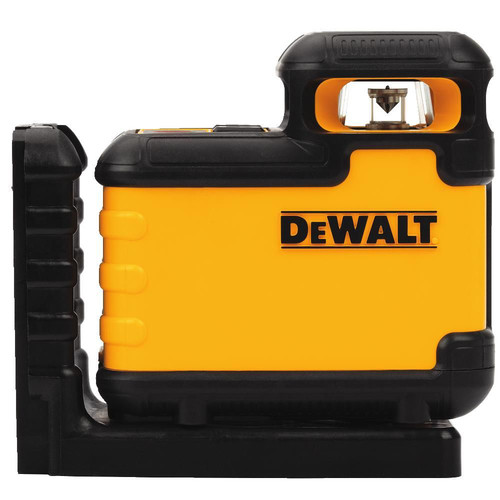

Dewalt DW03601 360-Degrees Red Beam Cross Line Laser

Model: dewndw03601
ratings        (22) Write A Review
Price reduced from $169.99 to Save 12% $149.99
free shipping
This item qualifies for
FREE SHIPPING
free shipping

Estimates For

alert warning icon

  • Last 6 In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt DW03601 360-Degrees Red Beam Cross Line Laser Model: dewndw03601
price for vip customer
Price reduced from $169.99 to Save 12% $149.99

OR PAY WITH

Product Features & specs :

Dewalt DW03601 360-Degrees Red Beam Cross Line Laser

Details
The DEWALT 360 Degree Red Beam Cross Line Laser can be used for a wide variety of projects from basic remodeling to woodworking to installing drywall. This laser has a locking pendulum and overmolded housing to protect it from drops. It includes an integrated bracket making it easy to mount on various surfaces.
Features:
  • 100 degree vertical line + 360 degree horizontal line
  • Class 2 Laser Product, < 1.5mW Power Output, Wavelength 630-680 nm
  • Locking pendulum
  • 3 position lock switch with manual mode
  • Integrated magnetic bracket
  • 1/4 in. 20 thread mount (for Tri-pod use)
  • Touch pad control panel
  • Over molded housing
  • Comes in a blow molded carrying case
  • 3 year limited warranty/1 year free service contract/90 day money back guarantee
What’s Included:
  • Batteries
  • Blow Case
  • Quick Start Guide
Power Source
Cordless
Wifi compatibility
No
Batteries Included
4
Battery Type
Alkaline
Accuracy Margin (Horizontal)
+/- 1/8 in
Bluetooth Compatibility
No
Accuracy Margin Distance (Horizontal)
33 ft
Self-Leveling Range
4 Degress
Effective Range (Visual)
33 ft
Charger Included
No
Protection Class
IP54
Case Included
Yes
Operating Temperature (F).Run Time (Max.)
14 Degrees Fahrenheit - 104 Degress Fahrenheit (-10 Degrees Celsius - 40 Degrees Celsius)
Case Type
Hard
Accuracy Margin (Vertical)
+/- 1/8 in
Voltage
1.5V
Laser Color
Red
Laser Diode
630 - 680 nm ≤ 3.2 mW
Laser Class
Class II
Accuracy Margin Distance (Vertical)
33 ft
Length
5 in.
Width
2.94 in.
Height
7 in.
Weight
2.2 lbs.
Warranty Term
3 Year

Reviews :

4.6 / 5.0
22 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
14
7
1
0
0
Would you recommend this product?
Yes (1)
Pros
Easy To Use (1)
Would you recommend this product?
Yes
Pros
Easy To Use
Good purchase.
Great little laser at this price. Only thing missing is a clamp on ceiling mount, but I had an old one that works.
Battery life is excellent as well.
July 4, 2020
Purchased
2 months ago
Describe Yourself:
Professional
Easy set-up
Got this laser to replace one that met an early demise. Something about a 16' board in a 12' room. Better visibility in bright areas than my old one. Maybe knocking it over was a blessing in disguise.
This review was collected as part of a promotion
December 6, 2018
Originally posted at
Does exactly what it says on the box.
I love Dewalt products, and this one is not an exception.
Bought this to replace a Bosch 100 ft. laser that got damage at first drop, my guys love this one, even though is 65 ft, and what a time saver plus accuracy!
Durable Dewalt design, easy to use, also great shock resistance case.
This review was collected as part of a promotion
November 12, 2018
Originally posted at
Should have got one sooner!
Should have got one a long time ago. Fast easy setup, time saver, on the square and on the level.
Thanks
This review was collected as part of a promotion
November 8, 2018
Originally posted at
Makes life so much easier!
This laser is of the highest quality! I've only been able to use it a handful of times; however, it made every job significantly easier.

For the home owner, the laser level allows one to hang a roomful of shelves, at the same level height, in a fraction of the time.

The laser was particularly helpful while doing tile work. The self adjusting laser level made repetition a breeze. This laser would shine in a number of jobs. Stud work and drop ceilings almost necessitate this tool.

Dewalt did a fantastic job with this tool!
This review was collected as part of a promotion
November 7, 2018
Originally posted at
Great for drop ceiling installation
Used this product for the first time to replace an old drop ceiling in my finished basement. I never did a drop ceiling before, but I knew it had to be level so I figured I’d give this a try. The laser only has a few buttons on it but there aren’t any words. Save the instructions for this bad boy until you get the hang of it. the lines were bright, showed all across the room 360 and lasted a long time. Was able to use my 12v battery to power it. Great design. Definitely helped me get the ceiling installation done and properly leveled. I will keep this in my toolbox and will use it again.
This review was collected as part of a promotion
November 7, 2018
Originally posted at
Very useful
Needs stronger magnets. Accurate everytime. Great for the small jobs
This review was collected as part of a promotion
November 6, 2018
Originally posted at
Tought as nails and fun to use !!!
Got this laser a few weeks ago and I got to say from the start I was impressed. I must have dropped it 3 or 4 times before I even turned it on and It worked fine. Great Quality !!! I used it to hang a room of pictures that all had to be the same hight then did the hallway the same way. My customer was very happy with the results. This laser made everything easy with its simple wall mount.
This review was collected as part of a promotion
November 4, 2018
Originally posted at
Easy to work with
I used this in my facility and made my job easier and a time safer, Very easy to see the red lines so it was made for a faster time line.
This review was collected as part of a promotion
November 2, 2018
Originally posted at
Great for laying out tile
The ease of this laser makes life as a contractor easy for laying out tile backsplashes. This is also a great tool from hangin pictures to framing and siding. I find myself reaching for it daily to see what I can use it for.
This review was collected as part of a promotion
November 2, 2018
Originally posted at
