Dake 220V 3-Phase Hydraulic Controlled 10 in. Dual Mitering Bandsaw - D-983112 Dake Model: D-983112
price for vip customer
$11,099.99

Product Features & specs :

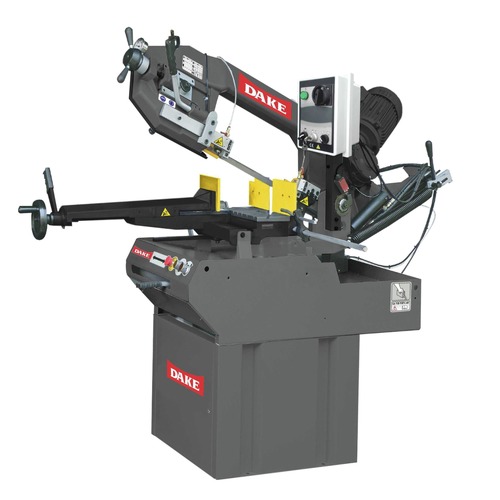

Dake D-983112 220V 3-Phase Hydraulic Controlled 10 in. Dual Mitering Bandsaw

Details

Heavy duty, dual mitering saw that comes with one standard Bi-metal blade. Hydraulic controlled down feed with automatic shut off at the end of the cut. 2.75 HP, 220V motor with up to 60 degrees right mitering capabilities. Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.

Features:

  • Hydraulic controlled down feed with adjustable manual return.

  • Automatic shut off at the end of the cut.

  • Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut

  • Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly.

  • Traversing vise can be used left or right of the blade.

  • Ergonomic designed for operator’s comfort and control.

  • Gearbox is direct bolted to the bow for less vibration, and positive drive gear box is direct driven via steel and bronze gears, no belts and pulleys to contend with.

  • CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch and blade cover interlock.

  • Blade tensioning is done via a hand wheel and color-coded gauge tensioning system taking the guesswork out of tensioning.

  • Miters up to 60 degrees right / 45 degrees left. Mitering pre-sets with flip up and pin stops makes set up fast and has precise with miter scale for all angles in between. The head turns -the material doesn’t. Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable.

What’s Included:

  • 220V 3-Phase Hydraulic Controlled 10 in. Dual Mitering Bandsaw - D-983112

Power Source

Corded

Wifi compatibility

No

Bluetooth Compatibility

No

Horsepower

2.75

Voltage

220V

Length

61 in.

Width

45 in.

Height

62 in.

Weight

807 lbs.

Warranty Term

1 Year
