Dake 220V 3-Phase Ferrous Head Semi-Automatic Cold Saw - D-976200 Dake Model: D-976200
price for vip customer
$21,999.99

OR PAY WITH

Product Features & specs :

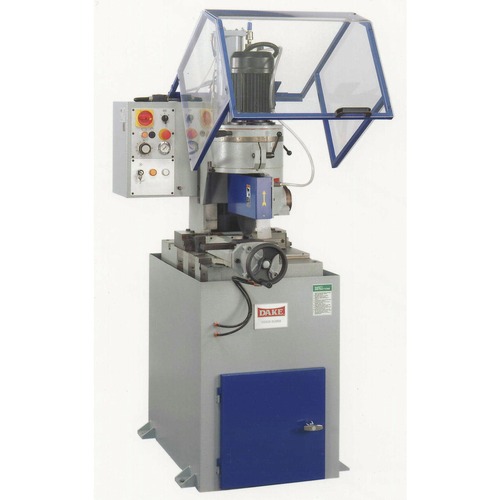

Dake D-976200 220V 3-Phase Ferrous Head Semi-Automatic Cold Saw

Details

Semi-automatic ferrous saw that's user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45 degrees and 90 degrees left/right, three gib guides, a manual oiler, and a self-adjusting, metal chip brush.

Features:

  • Head rotates 45 degrees right of center for miter cutting and up to 90 degrees left of center for miter cutting and slotting.

  • Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute.

  • Manual oiler to lubricate 1 in. thick, hardened vertical ways.

  • 3.5/4.5 HP motor has the muscle to drive a 14-1/2 in. or 12 in. blade quickly and quietly through solids.

  • Clear acrylic hood has shock assists for raising and lowering and electrical interlocks.

  • Table features two removable surface wear plates to support longer cut lengths.

  • Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment.

  • Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways.

  • Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm. Self-adjusting, metal chip brush fills removable chip drawer.

  • Ability to add a programmable feed system to make fully automatic with wide range of capabilities. Swap cutting head to gain non-ferrous/ferrous option on same saw.

What’s Included:

  • 220V 3-Phase Ferrous Head Semi-Automatic Cold Saw - D-976200

Length

47 in.

Width

35 in.

Height

75 in.

Weight

1313 lbs.

Warranty Term

1 Year
