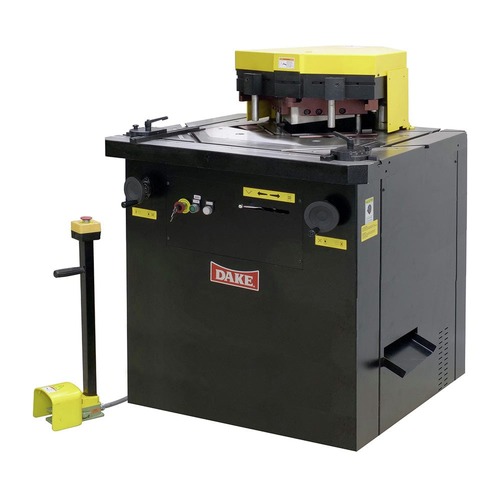

Dake Model DLN-6220V 220V 4 HP 3-Phase 4-Gauge Mild Steel Cutting Capacity Hydraulic Sheet Metal Notchers - D-960401

Dake Model: D-960401
$20,649.99
See More
See Less
free shipping
Free shipping on all orders over $149
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Nickel (Metallic), a chemical known to the State of California to cause Cancer and Nickel (soluble compounds), a chemical known to the State of California to cause Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dake Model DLN-6220V 220V 4 HP 3-Phase 4-Gauge Mild Steel Cutting Capacity Hydraulic Sheet Metal Notchers - D-960401 Dake Model: D-960401
price for vip customer
$20,649.99

OR PAY WITH

Product Features & specs :

Dake D-960401 Model DLN-6220V 220V 4 HP 3-Phase 4-Gauge Mild Steel Cutting Capacity Hydraulic Sheet Metal Notchers

Details

This model hydraulic notcher will cut notches from 30 to 140 degrees in mild steel and up to 6 mm in thickness and will do this at a maximum rate of 15 strokes per minute. 24 ton capacity 4-gauge mild steel, cutting length 8.5 in. x 8.5 in., table dimension 37.4 in. x 31.2 in. long 8.5 in. blades that can be resharpened many times for even more life. The blades have a negative rake to pull the material to the stops during the cut, for the best accuracy available. Blade angle is adjusted with the use of hand wheel and the notching stroke is controlled by a foot pedal.

Features:

  • Variable angle.

  • Capable of notches from 30 to 140 degrees in mild steel and up to 6 mm in thickness.

  • 15 strokes per minute.

  • 24 ton capacity 4-gauge mild steel.

  • Cutting length 8.5 in. x 8.5 in.

  • Table dimension of 37.4 in. x 31.2 in.

  • Long 8.5 in. blades.

  • Hand wheel adjusted blade angle.

  • Foot pedal controlled notching stroke.

What’s Included:

  • Model DLN-6220V 220V 4 HP 3-Phase 4-Gauge Mild Steel Cutting Capacity Hydraulic Sheet Metal Notchers - D-960401

Power Source

Corded

Wifi compatibility

No

Bluetooth Compatibility

No

Motor Phase

3

Horsepower

4

Voltage

220V

Warranty Term

1 Year
