Saw Trax 10100 Full Size 100 in. Cross Cut Vertical Panel Saw

Saw Trax Model: 10100
Price reduced from $5,983.99 to Save 7% $5,537.55
See More
See Less
free shipping
Free shipping on all orders over $149
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

Saw Trax 10100 Full Size 100 in. Cross Cut Vertical Panel Saw Saw Trax Model: 10100
price for vip customer
Price reduced from $5,983.99 to Save 7% $5,537.55

OR PAY WITH

Product Features & specs :

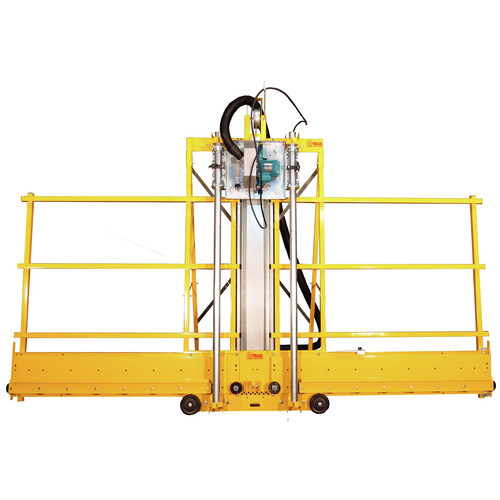

Saw Trax 10100 Full Size 100 in. Cross Cut Vertical Panel Saw

Details

The Saw Trax Full Size 10100 panel saw is part of the 1000 Series, designed for woodworkers who need precision cuts in sheet goods up to 1-3/4 in. thick. It features a 100 in. vertical cut height, allowing extra clearance for out-of-square materials, and a 120 in. wide frame that supports both vertical and horizontal cuts with ease. A 5007F circular saw mounted on a rotating insert allows quick switching between cut directions. The carriage runs on real steel bearings and uses a patented alignment system that stays square without adjustments. A built-in dust collection system effectively captures debris, while the quick-change carriage allows other cutting tools to be used. The saw also comes with a folding stand that sets up like a ladder for stability and ease of use, and transport wheels for portability. Measuring tapes and stops are included for accurate, repeatable cuts. Please note: Delivery requires a raised dock or forklift on site.

Features:

  • Has a 7.25 in. blade that can be easily changed and replaced when needed

  • Sealed Steel Bearing system for smooth and precise pulls on the guide tubes

  • Patented Accu-Square system to keep your cuts precise

  • Interchangable insert plates with additional accessories and cutting options

  • Stop Block with Bar is able to be used on either side of the unit

What’s Included:

  • 100 in. Heavy Duty 1000 Series Panel Saw - 10100

  • Full Size 120 in. Wide Frame

  • Makita 5007F 7.25 in. saw

  • Spinning saw insert plate

  • Dust hood, hose, and Dust Containment Brush

  • Folding Stand and Transport Wheels

  • Dual Rip Gauge

  • Stop Block with Bar, and Measuring Tapes

  • Patented Accu-Square System

  • Sealed Steel Bearings

  • Cord Holder

Power Source

Corded

Amperage

15

Wifi compatibility

No

Blade Diameter

7-1/4 in

Bluetooth Compatibility

No

Cross Cut Capacity

100 in

Motor Type

Brushed

Material Thickness (Max.)

1-3/4 in

Series

1000 Series

Length

100 in.

Weight

655 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Every Saw Trax Vertical Panel Saw is thoroughly inspected before leaving the factory. It is warranted to be free from defects from workmanship and materials for one year on all components except the saw motor. Should any trouble develop during the warranty period, contact us for a RMA & return that component with proof of purchase date, freight prepaid to Saw Trax Mfg. Co. Inc. If inspection shows the trouble caused by defective workmanship or materials, Saw Trax Mfg. Co. Inc. will repair (or, at our option, replace) without charge.


This warranty does not apply where:

  1. - Repairs have been made or attempted by others.

  2. - Repairs are required because of normal wear and tear.

  3. - The tool has been abused, misused or improperly maintained.

  4. - Alterations have been made to the tool.

  5. - Corrosion and / or rust have developed due to scratches in the finish.

  6. - The saw motor is covered by the saw manufacturer’s warranty and is not covered by Saw Trax Mfg., Inc.


In no event shall Saw Trax Mfg. Co., Inc. be liable for any indirect, incidental or consequential damages from the sale or use of this product. This disclaimer applies both during and after the duration of this warranty.

Saw Trax Mfg. Co. Inc. disclaims liability for any implied warranties, including (but not limited to) implied warranties of “merchantability” and/or “fitness” for a specific purpose, after the term of this warranty.
